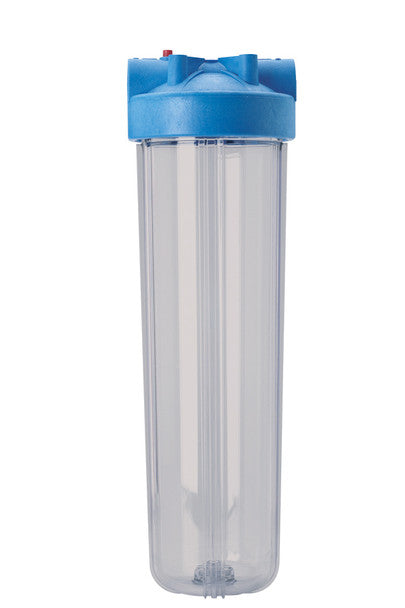

Pentek 166201 #20 Big Clear Housing 1" NPT Blue Cap With Pressure Relief

Features & Benefits:

• Large capacity housing suitable for high flow applications
• Available in 10" and 20" lengths
• Pressure relief/bleed on inlet side of cap
• Accepts up to 4-1/2" diameter cartridges

Specifications:

• Part Number: 166201
• Ports: 1" NPT
• Maximum Dimensions: 23.22" x 7.28" (590 mm x 185 mm)
• Blue Cap
• Clear Sump
• Housing – Lexan (#10); SAN (#20)
• Cap – Polypropylene
• Button Assembly – 300-Series stainless steel, EPDM, and polypropylene
• O-Ring – Buna-N
• Temperature Rating- 40-100o F (4.4-37.8o C)
• Maximum Pressure 10" Housing: 100 psi (6.9 bar)
• Maximum Pressure 20" Housing:: 90 psi (6.2 bar)
• Case Quantity: 4 Pieces (Pricing is per piece)
