Pentek

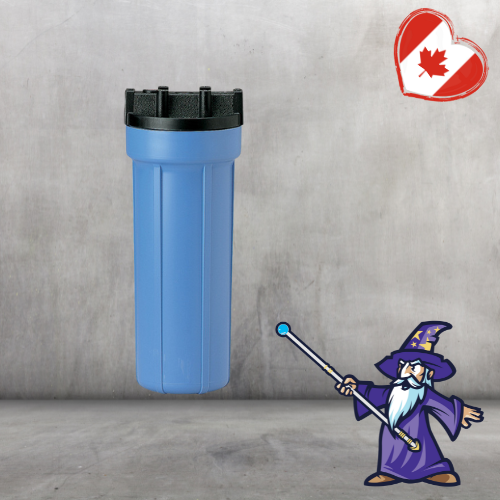

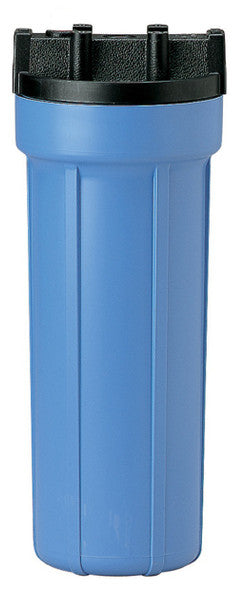

Pentek 158196 #10 Slim Line Housing 1/2" NPT Black/Blue w/o Pressure Relief
Pentek 158196 #10 Slim Line Housing 1/2" NPT Black/Blue w/o Pressure Relief
Regular price
$3,590,112.46 CAD
Regular price
$35.90 CAD
Sale price
$3,590,112.46 CAD
Shipping calculated at checkout.
You will be charged a deposit today and the remaining balance before delivery.
To display Pay Later, Split Pay purchase options for products, ensure you have created a purchase option for it in the app. This message is only visible in the theme editor and won't appear on your live site.
Quantity
Couldn't load pickup availability
FEATURES & BENEFITS
- Slim design reduces space required for installation without sacrificing capacity
- Available in 5", 10" and 20" lengths
- Optional pressure relief/bleed button on inlet side of cap
- Leak-proof seal
- Available with clear or opaque sumps
SPECIFICATION
- Part Number: 158196
- Ports: 1/2"NPT
- Maximum Dimensions: 11.75" x 4.38" (298 mm x 111 mm)
- Housing: Polypropylene (opaque) or Styrene Acrylonitrile (clear)
- Cap: Reinforced polypropylene
- Button Assembly: 300 Series stainless steel, EPDM, and polypropylene
- O-Ring: Buna-N
- Temperature Rating: 40-125°F (4.4-51.7ºC)
- Maximum Pressure: 125 psi (8.6 bar)
- 3.00 LBS
