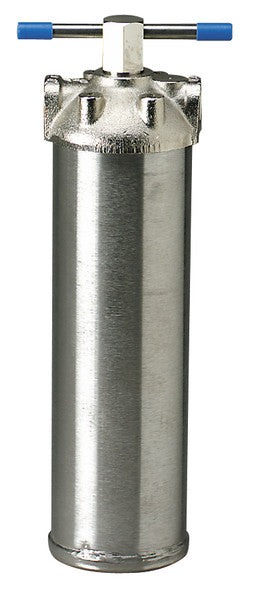

Pentek 156017-02 ST Series 3/4" 10 GPM Stainless Steel Housing for 10" Cartridge

 FEATURES & BENEFITS

• Heavy duty units for smaller filtration systems and point of use applications
• Brushed 304 stainless steel sump with a cast brass/nickel plated head
• Ideal for high pressure/hot water applications
• Accepts complete range of standard double open end (DOE) cartridges

SPECIFICATION

• Part #: 156017-02
• Model # ST-1 for 10" cartridges
• Flow Rate: 10 gpm
• Maximum Dimensions: 12.88" x 4.13" (327 x 105 mm)
• Housing – Brushed 304 stainless steel
• Head – Brass/nickel plated
• Temperature Rating– 40-300°F (4.4-149ºC)
• Port Size: 3/4" NPT
• Sealing Gaskets – Buna-N Cellulose Fiber
• Maximum Pressure – 250 psi (17.2 bar)
• 6.00 LBS
