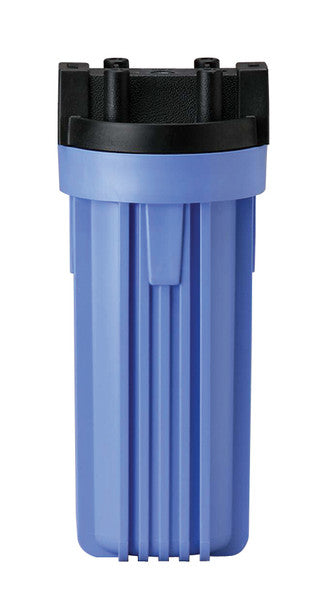

Pentek 150068 #10 3/4" Standard Blue/Black Filter Housing w/o Pressure Relief

FEATURES & BENEFITS

• Ideal for a wide range of applications, including residential, commercial and industrial
• Available in 10" and 20" lengths
• Thick walls for increased strength
• Optional pressure relief/bleed button on inlet side of cap
• Leak-proof seal
• Available with clear or opaque sumps

SPECIFICATION

• Part Number: 150068
• Ports: 3/4" NPT
• Maximum Dimensions: 12.25" x 5.13" (311 mm x 130 mm)
• Black Cap
• Blue Sump
• Housing: Polypropylene (opaque) or Styrene Acrylonitrile (clear)
• Cap: Reinforced polypropylene
• Button Assembly: 300 Series stainless steel, EPDM, and polypropylene
• O-Ring: Buna-N
• Temperature Rating– 40-125°F (4.4-51.7°C)
• Maximum Pressure – 125 psi (8.6 bar)
• 4.00 LBS
